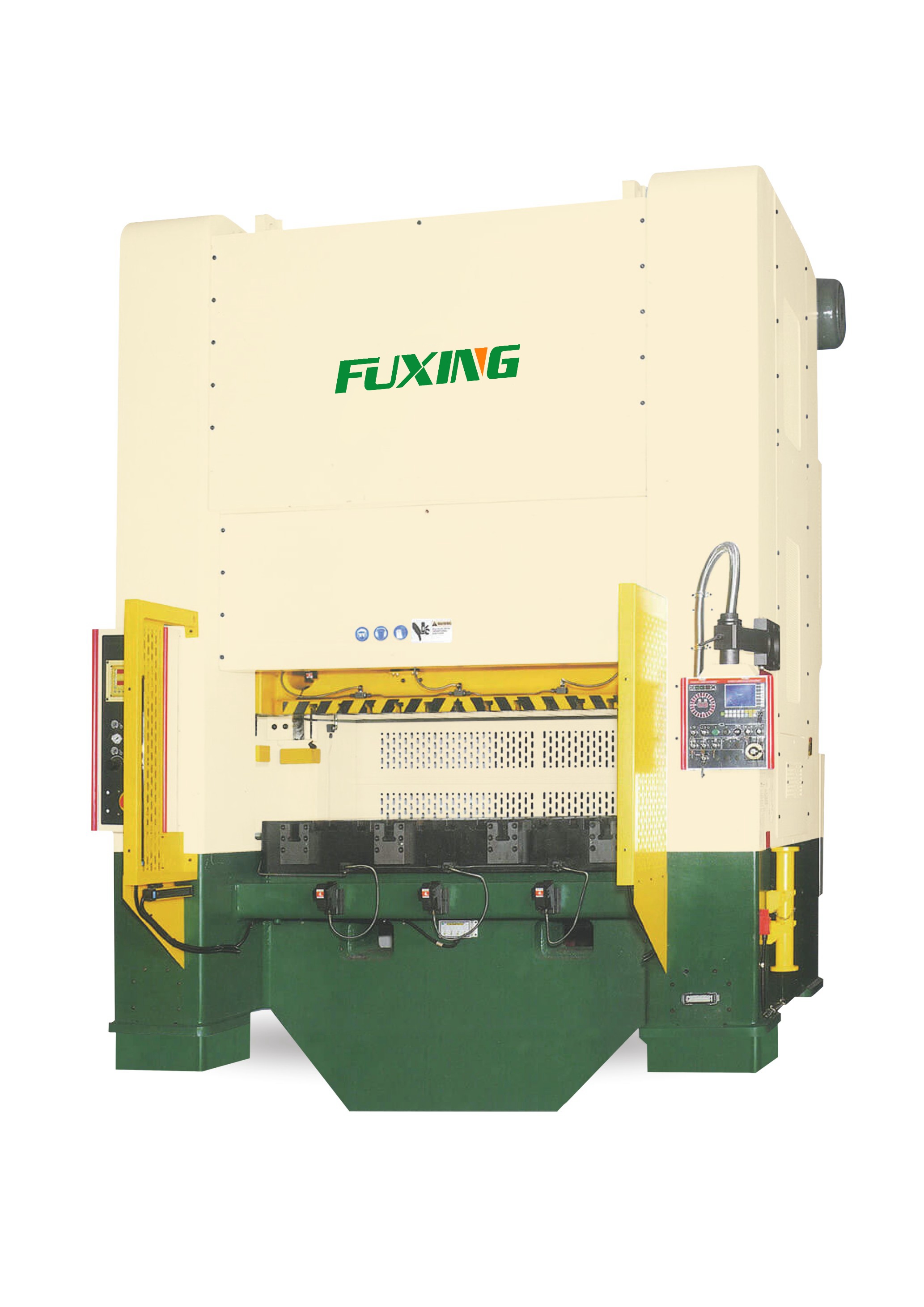

SKL Toggle Type Double Point SerIes

Technical Characteristics

High-Rigidity Load Structure:The load-bearing structure adopts a high-rigidity design, significantly reducing frame deformation. This not only ensures product precision but also extends die life.

Heavy-Duty Toggle Motion Curve:The SKL series utilizes a heavy-duty toggle motion curve that approaches the workpiece surface slowly, creating smooth plastic deformation. This design ensures stable production processes and high product accuracy.

High-Efficiency Dry-Type Clutch and Brake System:A high-performance, separated dry-type clutch and brake minimizes operational noise. The specially designed friction plates offer high torque and low inertia, improving single-stroke operation efficiency and extending the service life of the clutch and brake system.

Premium Components:For press capacity below 500 tons, the system adopts original German Ortlinghaus-brand composite dry clutch and brake, ensuring reliability and performance.
