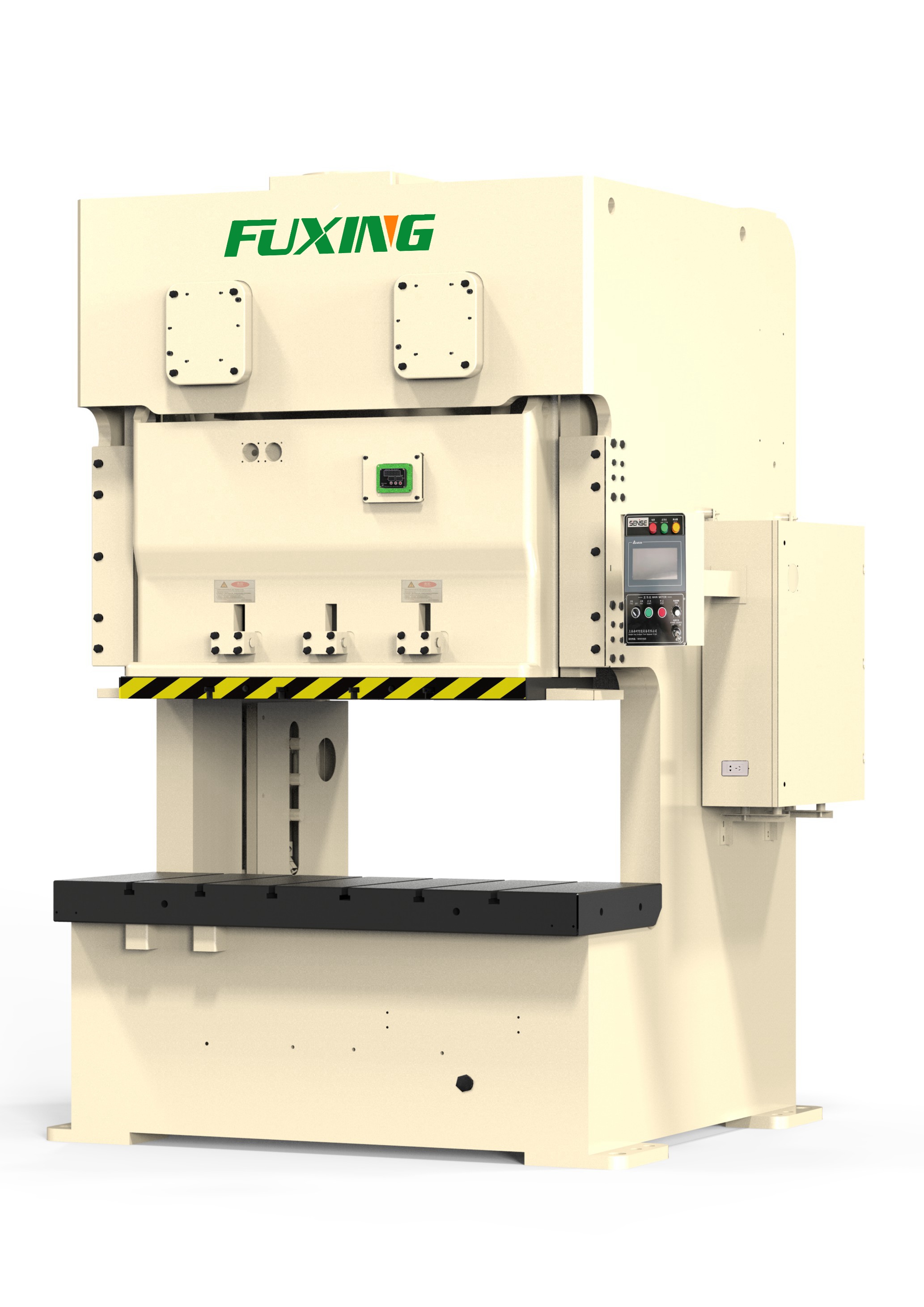

APC Open double crankshaft high precision punch

Product Introduction

The APC series punch presses adopt a high-rigidity welded frame and a double-crankshaft structure, featuring excellent stability and load distribution performance. They are widely applicable to large-sized molds and multi-station stamping processes, such as blanking, drawing, and forming. Equipped with a high-sensitivity clutch-brake system, automatic lubrication, fine adjustment of die height and other functions, they support efficient and automated continuous production, and are suitable for precision stamping fields such as automotive, home appliances, and electronics industries.

Standard Accessories:

• Inverter

• Touch Screen

• Pre-Cutting Counter

• Pre-Break Counter

• Electronic Cam

• Hydraulic Overload Protection Device

• Motorized Slide Adjustment Device

• Electric Die Height Indicator

• Electric Grease Lubrication Device

• Slide & Die Balancing Device

• Crank Angle Indicator

• Counter

• Air Source Connector

• Double Downstroke Protection Device

• Misfeed Detection Device

• Power Outlet

• Maintenance Tools & Toolbox

• User Manual

Optional Accessories:

• Pneumatic Die Cushion Device

• Upper Knock-Out Device on Slide

• Foot Switch

• Die Lighting Device

• Leveling Machine (Straightener)

• Anti-Vibration Pads

• Quick Die Change System (Lifter, Clamper, or Die Arm)

• Photoelectric Safety Device

• Feeder (Pneumatic, Mechanical, or NC Types)

• Material Uncoiler (Decoiler)

• Robotic Arm (Manipulator)

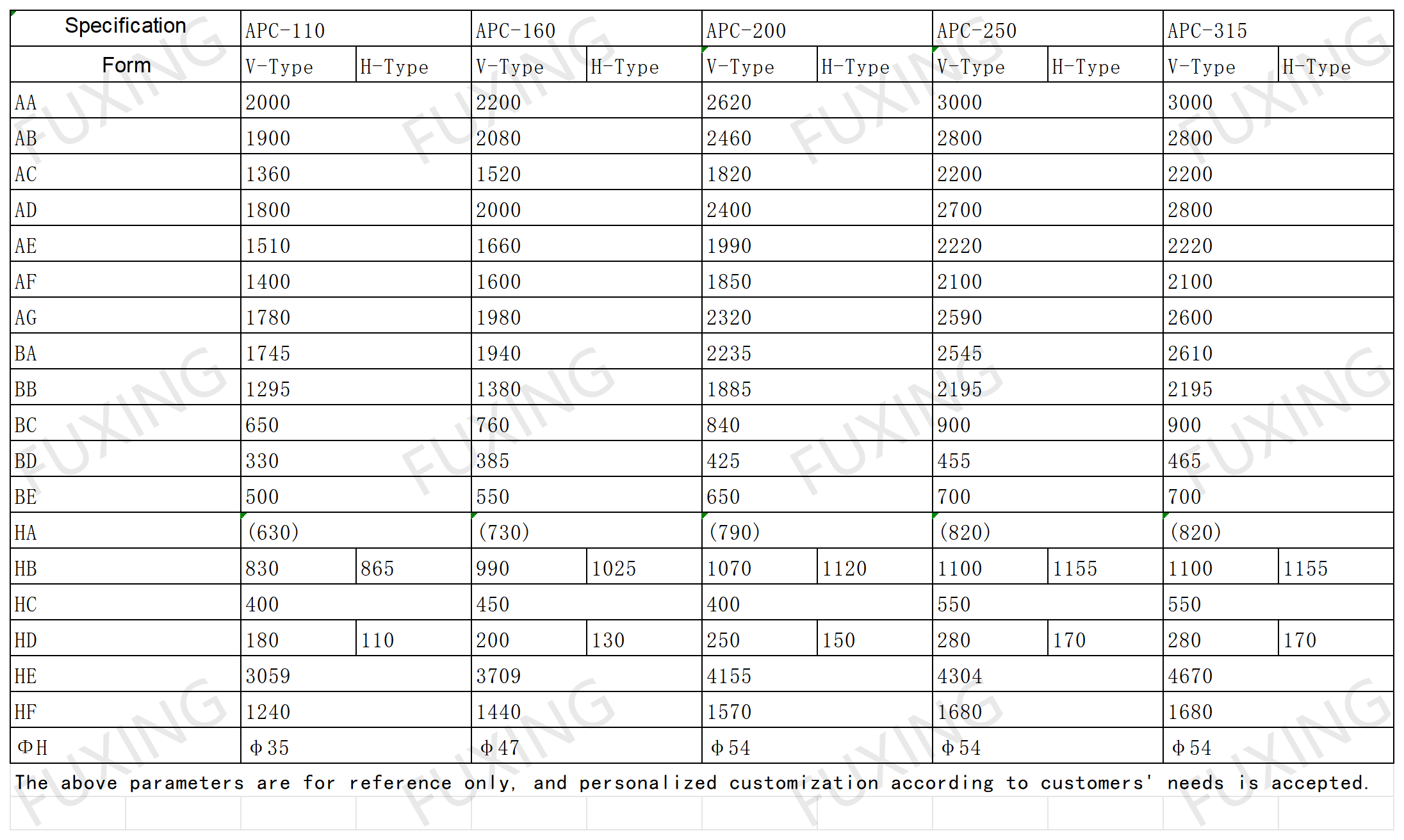

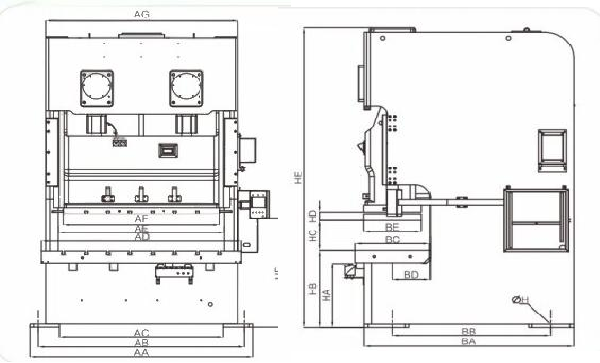

Workbench parameters

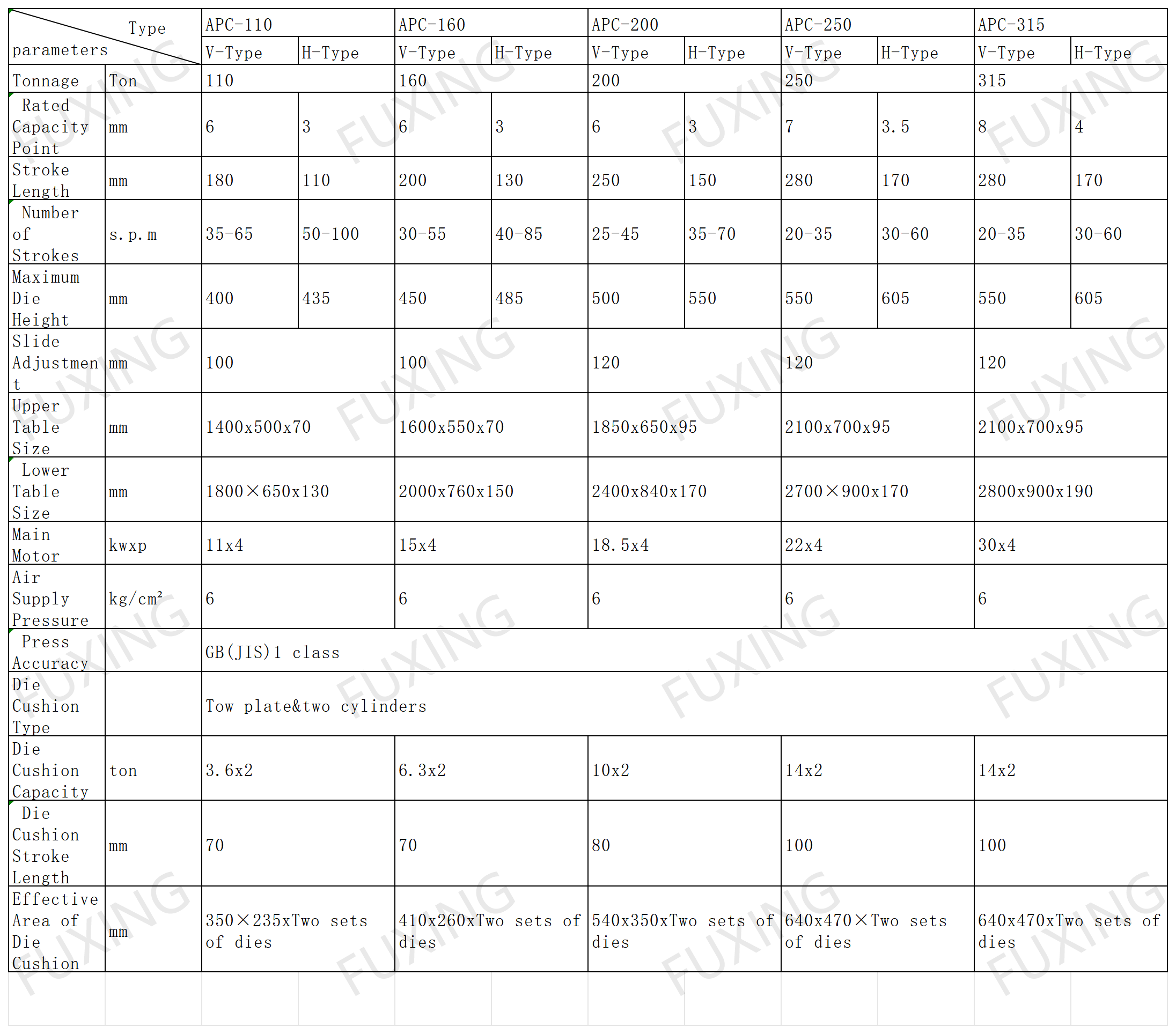

Product parameters
