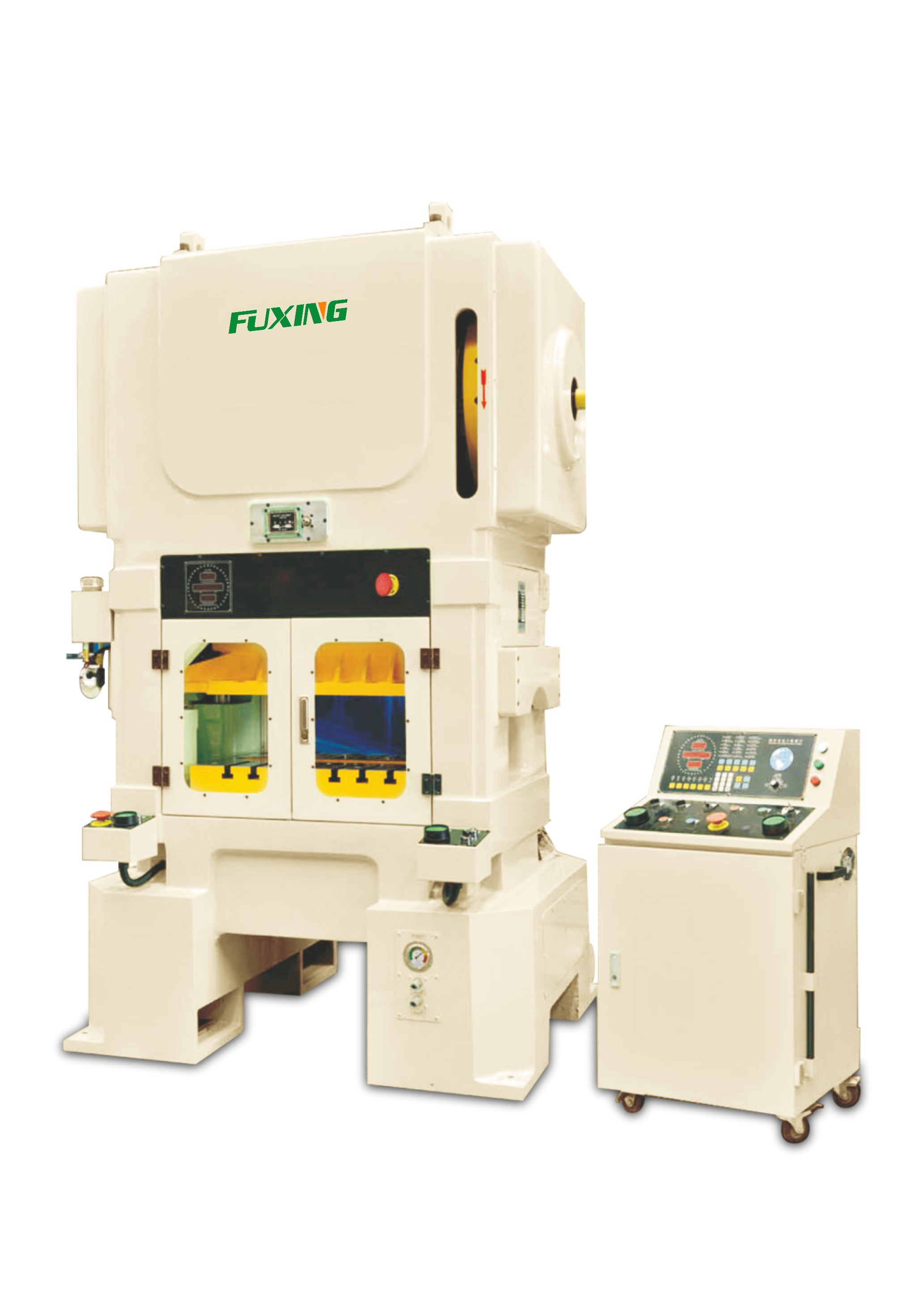

APF Gantry Four-Post High-Speed Punching Machine

Technical Features

• The frame is made of high-strength cast iron with a high-precision monoblock gantry structure, preventing the opening of the frame under load and ensuring the machining of high-precision products.

• Dual-axis center guidance and full-length, four-column guiding system ensure excellent stamping precision even under eccentric loading, thus extending the lifespan of the press.

• A forced lubrication and oil-cooling system minimizes thermal deformation, enabling high-precision product processing.

• An excellent dynamic balancing system reduces vibration, ensuring optimal precision and stability for the press.

Standard Accessories

• Die Height Indicator

• Manual Slide Adjustment Device

• Hydraulic Mold Lock

• Forced Circulation Oil System

• Programmable Logic Controller (PLC)

• Slide & Die Dynamic Balancing Device

• Touch Screen

• Crank Angle Indicator

• Air Source Connector (1/2)

• Blow-off Device (1/2)

• Misfeed Detection Device

• Toolbox

• User Manual

• Dynamic Balancing Device

• Material Lubrication Device

• Bottom Dead Center (BDC) Detector

• Anti-Vibration Device

Optional Accessories

• Feeder

• Material Uncoiler (Decoiler)

• Leveling Machine

• Hydraulic Locking Mechanism

• Oil Temperature Cooling System

• Electronic Cam

• Electronic Pre-setting Counter

• Electronic Accumulation Counter

• Die Height Indicator

• Air Source Connector (Single Circuit)

• Adjustable Anti-Vibration Pads (For Feeding)

• Automatic Oil Drip System

• Slide Balance Device

• Electric Slide Adjustment Device

• Toggle Clamp Device

• Forced Lubrication Oil Delivery System

• Misfeed Detection Device

• Power Outlet (24V)

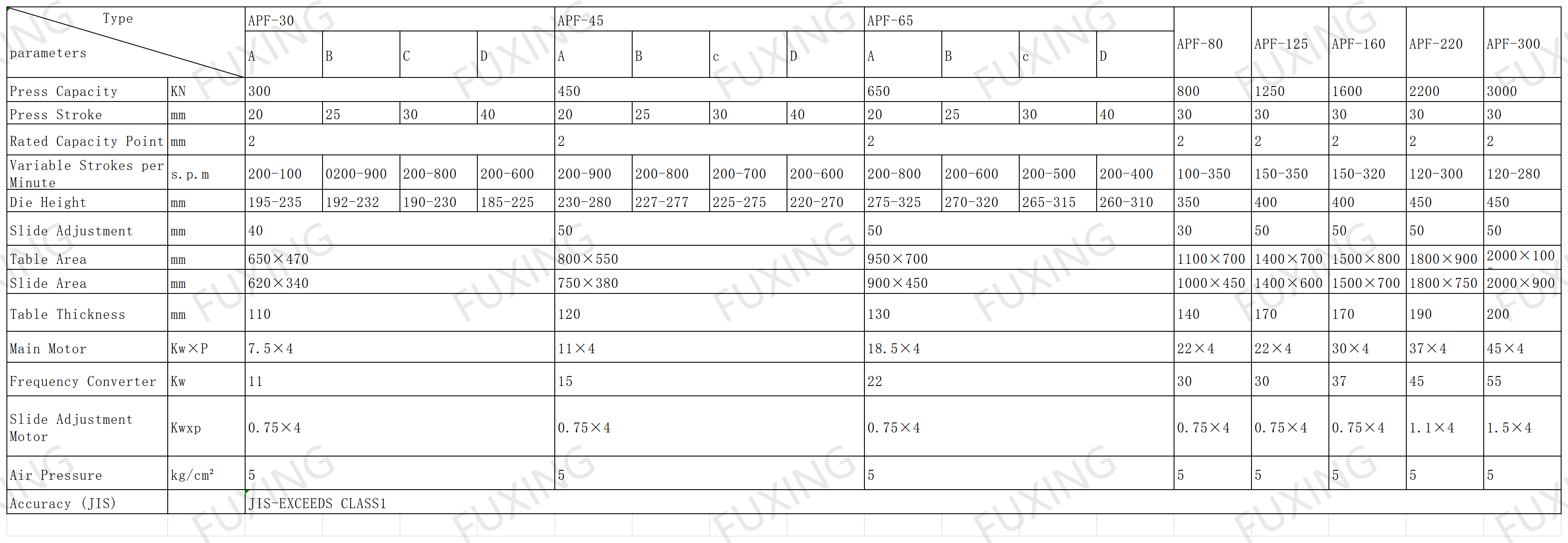

Product parameters
