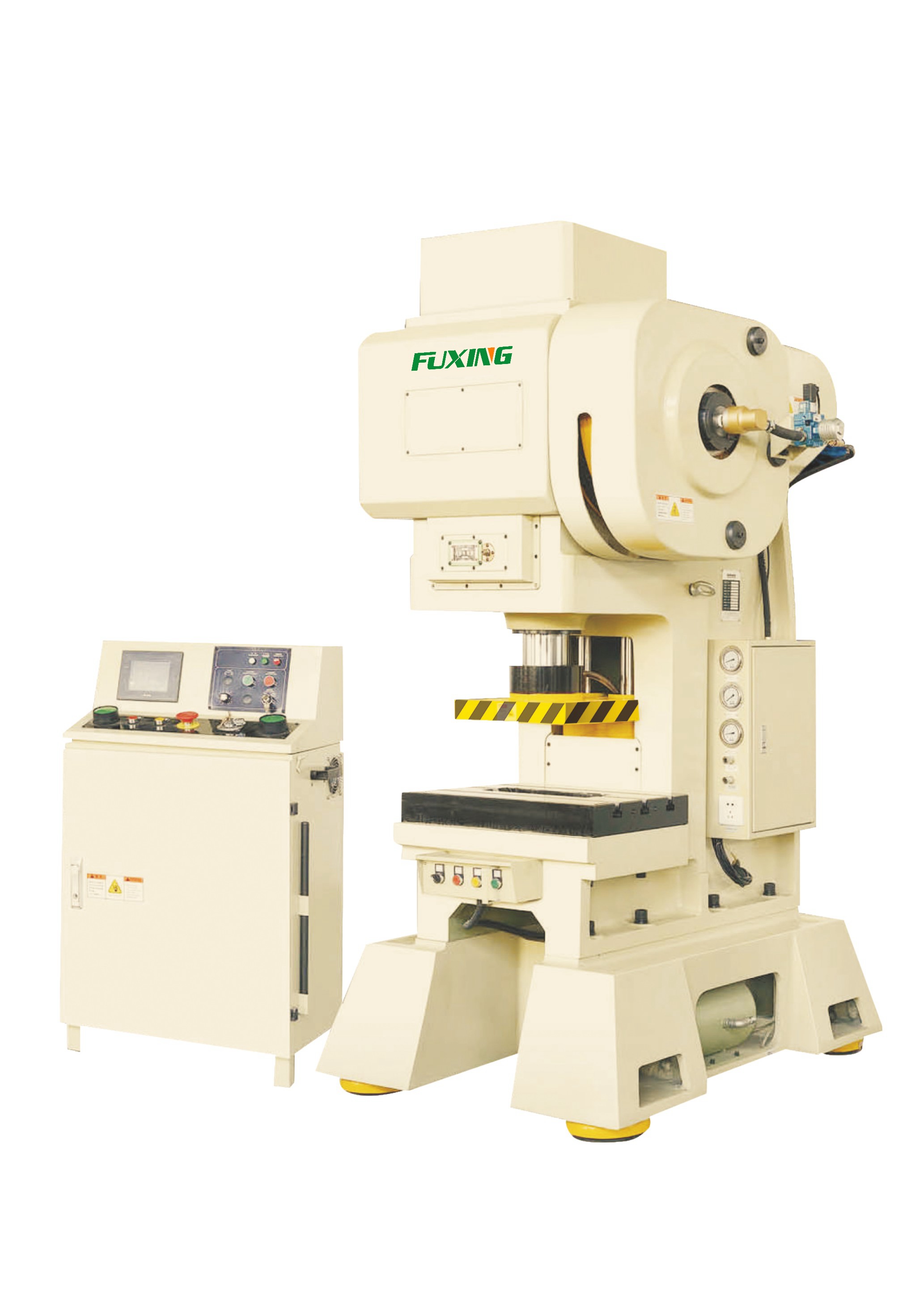

APH Guide column high-speed punch

Product Introduction

The APH guide pillar type high-speed punching machine features a high-rigidity frame and precision four-guide pillar structure, delivering excellent stability and guiding accuracy. It is designed for high-speed, high-precision stamping processes, suitable for producing parts such as electronic terminals and motor cores. With a stamping speed of up to 600 strokes per minute, the machine is equipped with advanced lubrication, cooling, and automatic control systems to balance efficiency and mold life, making it an ideal choice for the precision stamping field.

Standard Accessories

• Die Height Indicator

• Manual Slide Adjustment Device

• Hydraulic Mold Lock

• Forced Circulation Oil System

• Programmable Logic Controller (PLC)

• Slide & Die Dynamic Balancing Device

• Touch Screen

• Crank Angle Indicator

• Air Source Connector (1/2)

• Blow-off Device (1/2)

• Misfeed Detection Device

• Toolbox

• User Manual

Optional Accessories

• Anti-Vibration Device

• Feeder

• Material Uncoiler (Decoiler)

• Leveling Machine

• Dynamic Balancing Device

• Material Lubrication Device

• Bottom Dead Center (BDC) Detector

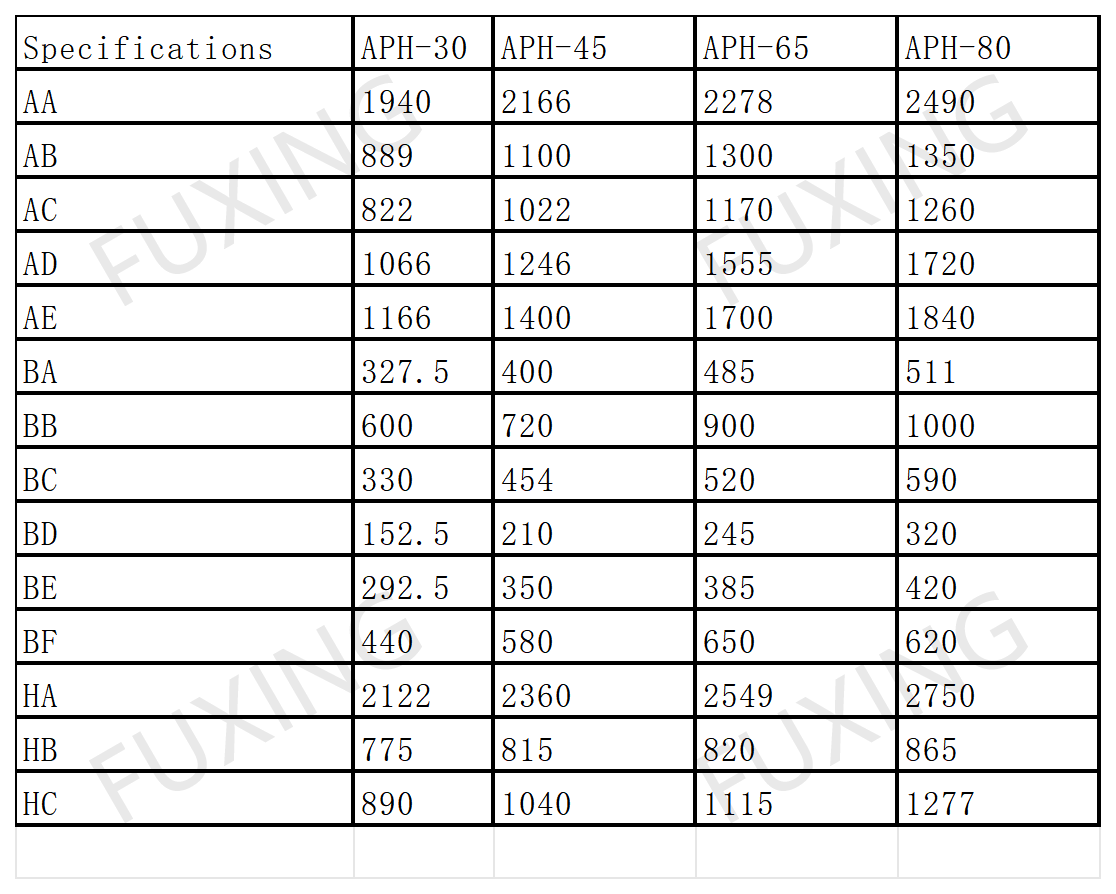

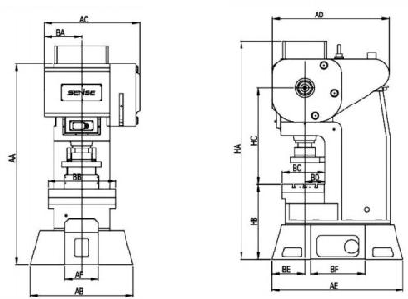

Workbench parameters

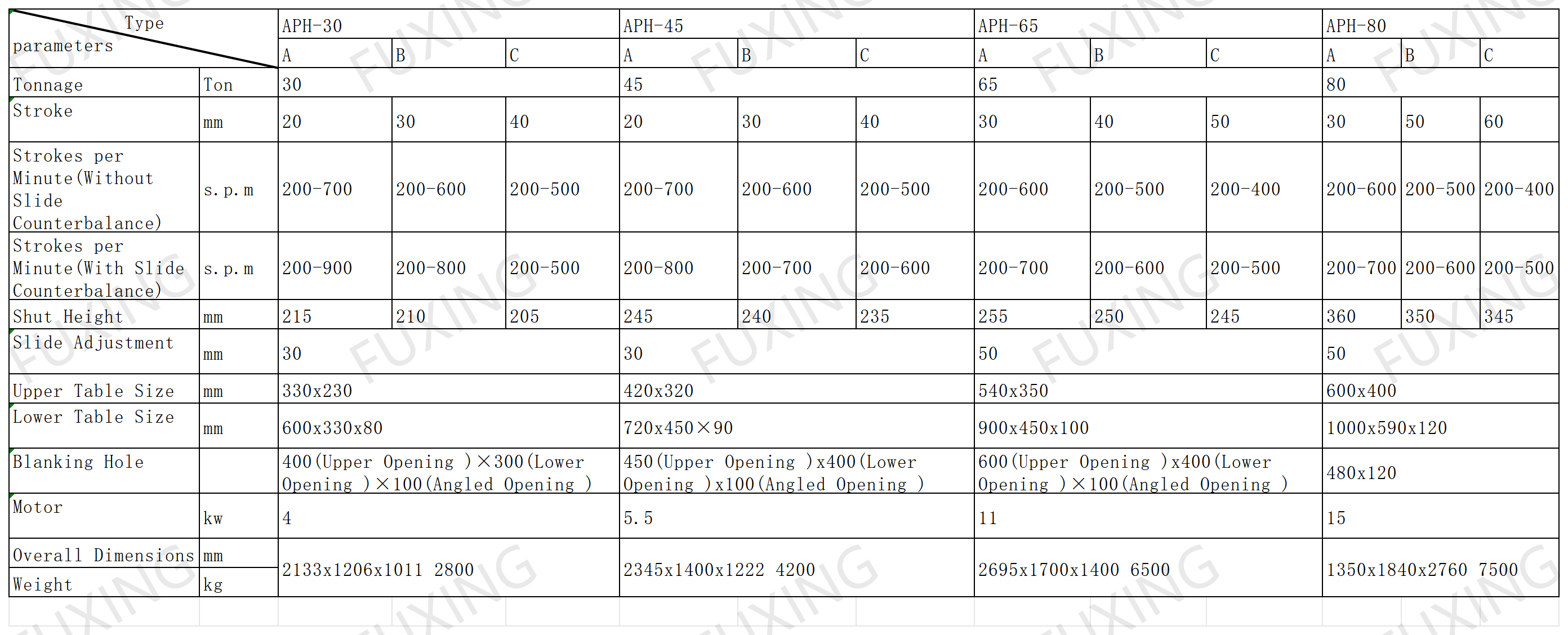

Product parameters
