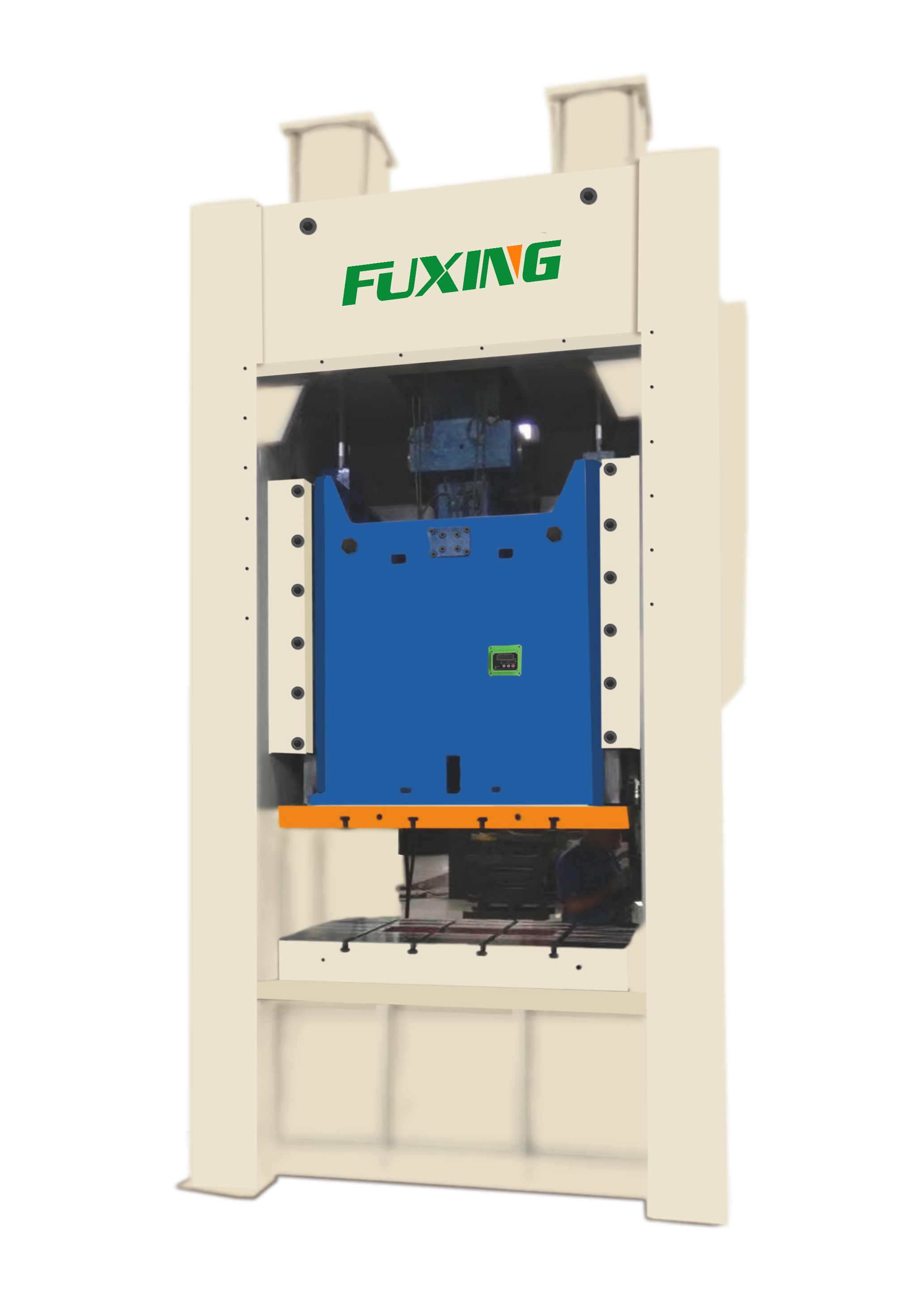

SHK Toggle-Type Warm Die Forging

Technical Characteristics

• The SHK Series features a toggle mechanism and a widened bed area, designed for continuous precision cold forging and forming, enhancing productivity.

• Suitable for both cold and warm forging processes, it is ideal for thick plate stamping, bending, and progressive deep drawing. The toggle transmission ensures a unique forming curve.

• The slide motion curve includes extended dwell time at bottom dead center (BDC), allowing precise cutting, near-net forming, and complex shape forging.

• The extended dwell period enables stable forming with minimal spring back, resulting in better formability and increased product yield.

• A delayed return stroke prevents deformation or rebound, ensuring improved forming quality and process consistency.

Standard Accessories

• Movable Operation Console

• Inch / Single Stroke / Continuous & Safety Operation Modes

• Slide Balancing Device

• Motorized Slide Adjustment

• Anti Double-Down Protection Device

• Mechanical Die Height Indicator

• Programmable Logic Controller (PLC)

• Load Monitoring System (Electronic Type)

• Electronic Rotary Cam Switch

• 6-Digit Electronic Preset Counter

• One-Circuit Air Source Connector

• 24V Work Light

• Misfeed Detection Device

• Automatic Forced Lubrication System

• Photoelectric Interface

• Separate Electrical Cabinet

• Double Solenoid Valve

• Inverter (Frequency Converter)

• Air Blow Device

• NC Interface

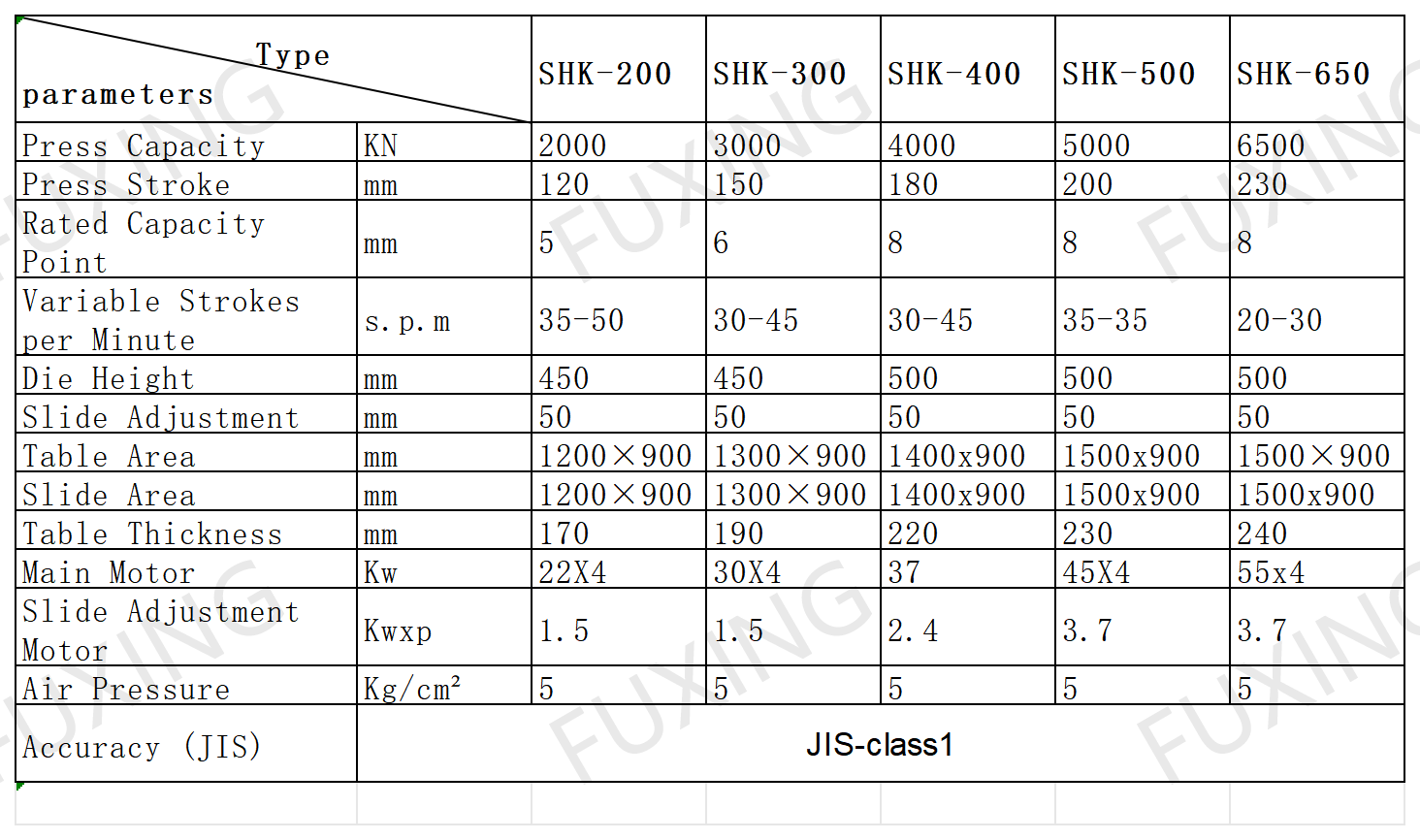

Product parameters
