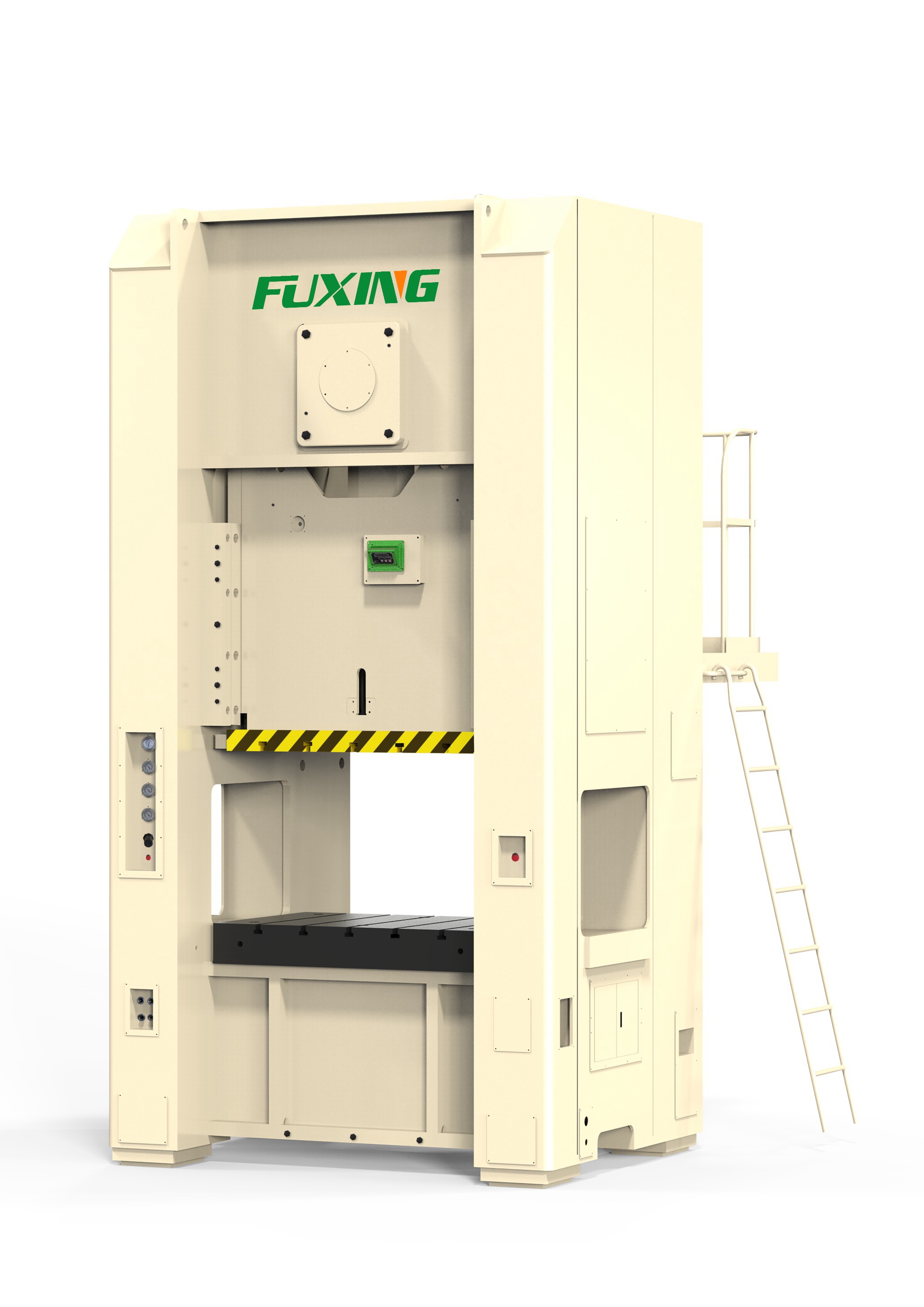

APM Closed single crankshaft high precision punch

Product Introduction

High Rigidity:The press features a fully welded one-piece frame design, eliminating angular deformation issues common in open-type presses and ensuring excellent structural rigidity.

High Precision:Equipped with eight-sided slide guides at four corners, the design guarantees high slide motion accuracy, stable operation, and enhanced resistance to off-center loading.

Low Noise:The transmission gears are ground and enclosed in a sealed gearbox, significantly reducing gear noise during operation.

Automation Ready:Large side openings on both sides of the frame, along with multiple pre-set electronic cam signal ports, provide convenient integration with various automation equipment.

Enhanced Safety:A friction clutch allows the slide to stop instantly at any position. Coupled with a dual-solenoid valve system, it ensures reliable clutch and brake performance, maximizing operator safety.

Standard Accessories

• Inverter

• Touch Screen

• Pre-Cutting Counter

• Pre-Break Counter

• Electronic Cam

• Hydraulic Overload Protection Device

• Motorized Slide Adjustment Device

• Electric Grease Lubrication Device

• Electric Die Height Indicator

• Counter

• Misfeed Detection Device

• Double Downstroke Protection Device

• Air Source Connector

• Power Outlet

• Maintenance Tools & Toolbox

• User Manual

Optional Accessories

• Pneumatic Die Cushion Device

• Foot Switch

• Leveling Machine (Straightener)

• Quick Die Change System (Lifter, Clamper, or Die Arm)

• Feeder (Pneumatic, Mechanical, or NC Types)

• Photoelectric Safety Device

• Upper Knock-Out Device on Slide

• Material Uncoiler (Decoiler)

• Die Lighting Device

• Robotic Arm (Manipulator)

• Anti-Vibration Pads

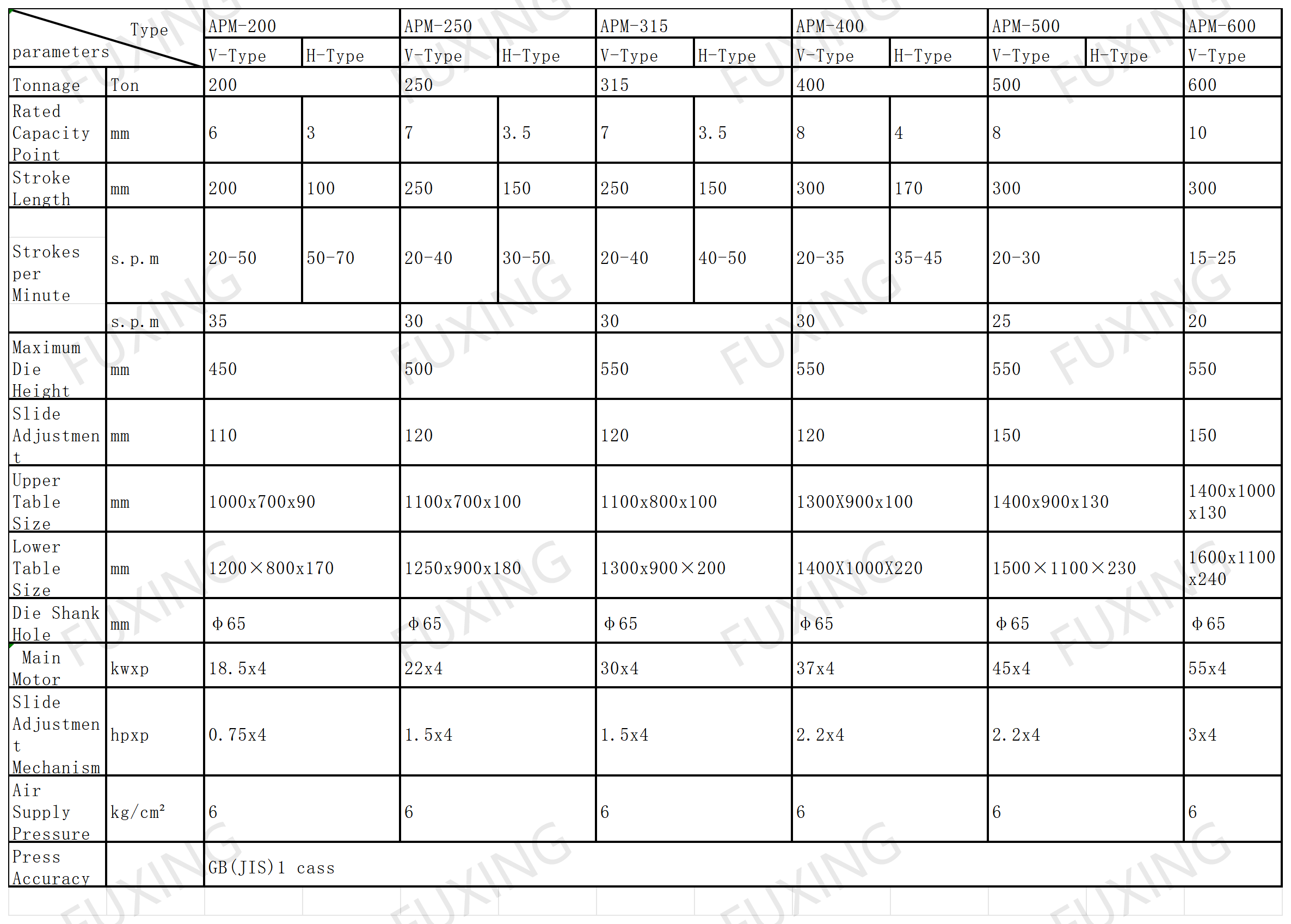

Product parameters
