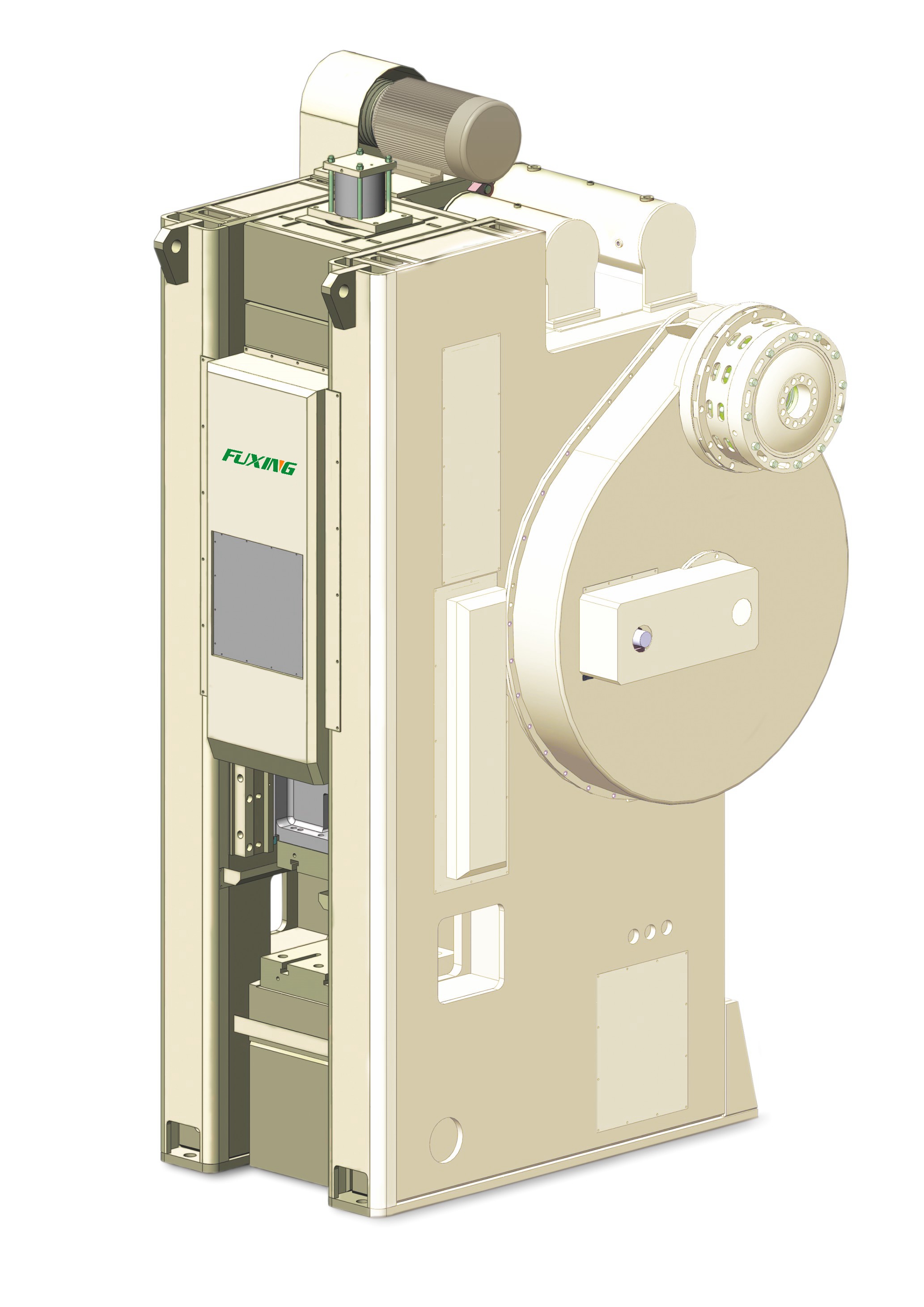

SDP Single-Station Toggle-Type Cold Forging Machine

Technical Characteristics

SDP Series products adopt advanced Japanese technology and are supervised by Taiwanese engineers, reaching the level of similar products made in Taiwan.
Built with a modular box-type welded frame using copper plates, stress is relieved through annealing heat treatment and surface sandblasting.
The crankshaft runs the full length of the frame and is forged from high-quality alloy steel.
The slide uses extra-wide, fully enclosed 8-sided guideways, providing high guiding accuracy.
Equipped with a separate clutch-brake unit offering high torque, excellent braking performance, fast response, and sensitive operation.
Automatic lubrication system ensures optimal protection of the press machine.
The toggle-type press structure provides a unique slide motion curve, slowing down significantly near bottom dead center (BDC) compared to crank-type presses, with superior positional accuracy. Ideal for embossing, sizing, extrusion forming, and other heavy-duty stamping applications.

Standard Functions / Accessories
Dual-Hand Movable Push Button Control Console
Operation Mode Selector (Inch / Single Stroke / Safety Stroke / Continuous Stroke)
Anti Double-Down Protection Device
Motorized Slide Adjustment
Digital Die Height Indicator (Resolution: 0.1 mm)
Slide Balancing Device
Electronic Rotary Cam Switch
6-Digit Preset Counter
6-Digit Stroke Counter
Misfeed Detection Interface (Normally Open Type)
Air Blow Device
Air Source Connector
Inverter (Frequency Converter)
