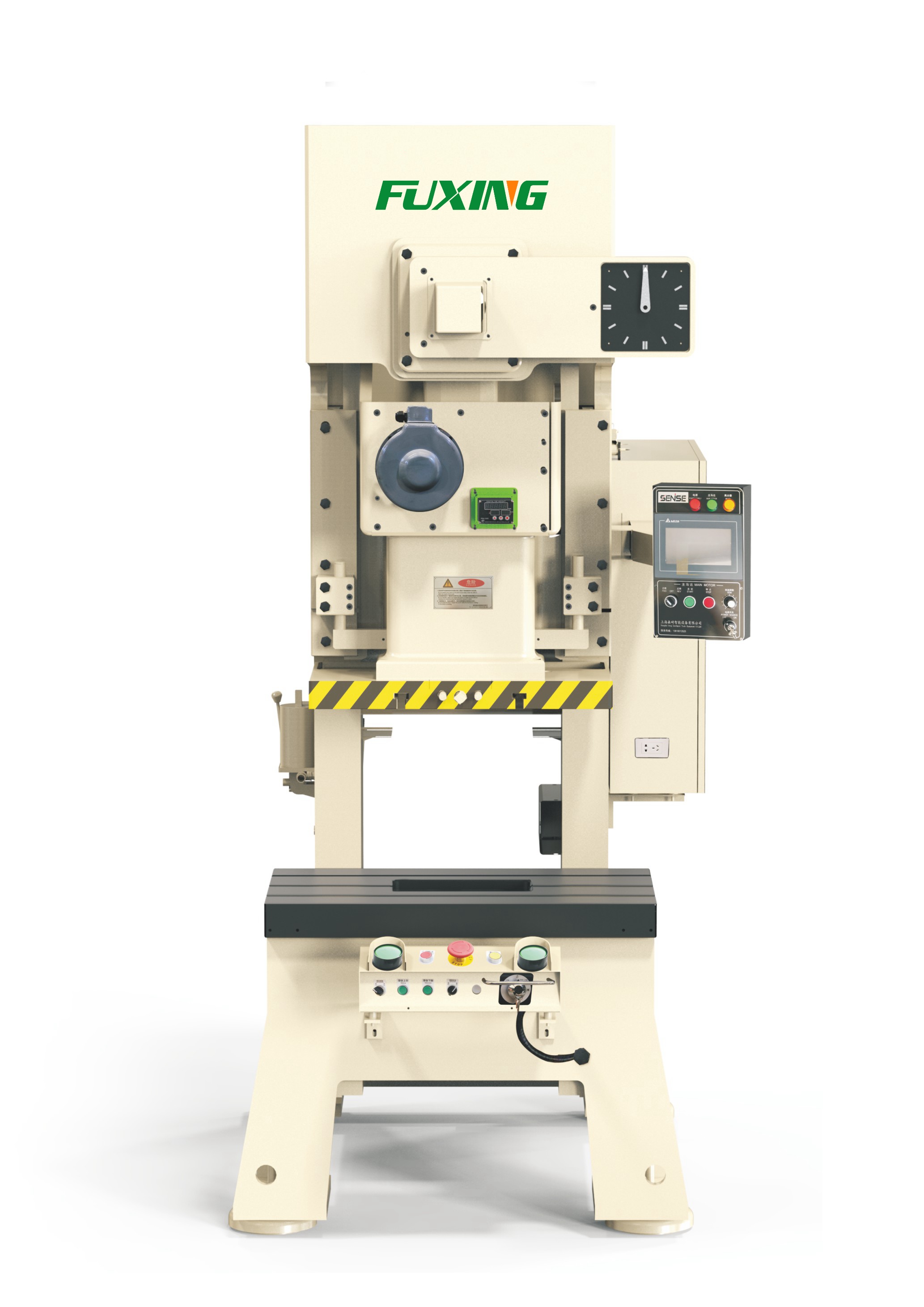

APA Open type single point high precision punch

Product Introduction:

The APA series open single-point punching machines feature a high-rigidity integrated C-frame structure combined with a six-sided long-guide slider system, ensuring high precision and stability during stamping. Standard configurations include a high-performance dry clutch, automatic forced lubrication system, electric die height adjustment, and mold protection device, adapting to modern automatic stamping requirements.

Applicable Processes:

Punching, blanking, shallow drawing, bending, forming, and other metal sheet processing with medium to small tonnage.

Typical Application Industries:

Electronics and electrical appliances, automotive components, home appliance hardware, metal products processing, etc.

Key Features:

• High-rigidity integrated C-frame structure enhances vibration resistance and service life.

• Six-sided guide rail design ensures stamping precision and stable mold guidance.

• High-performance dry clutch-brake system enables fast response and high safety.

• Automatic lubrication system extends the service life of equipment and molds.

• Electric die height adjustment with digital display for easy and precise setup.

• Compatible with feeders and photoelectric protection devices to support automated production lines.

Standard Accessories

• Inverter

• Touch Screen

• Pre-Cutting Counter

• Pre-Break Counter

• Electronic Cam

• Hydraulic Overload Protection Device

• Manual Slide Adjustment Device (≤A1-60)

• Motorized Slide Adjustment Device (≥A1-60)

• Mechanical Die Height Indicator (≤A1-60)

• Electric Die Height Indicator (≥A1-60)

• Slide & Die Balancing Device

• Crank Angle Indicator

• Counter

• Air Source Connector

• Double Downstroke Protection Device

• Misfeed Detection Device

• Power Outlet

• Maintenance Tools & Toolbox

• User Manual

Optional Accessories

• Electric Grease Lubrication Device

• Pneumatic Die Cushion Device

• Foot Switch

• Quick Die Change System (Lifter, Clamper, or Die Arm)

• Upper Knock-Out Device on Slide

• Die Lighting Device

• Anti-Vibration Pads

• Photoelectric Safety Device

• Feeder (Pneumatic, Mechanical, or NC Types)

• Material Uncoiler (Decoiler)

• Leveling Machine (Straightener)

• Robotic Arm (Manipulator)

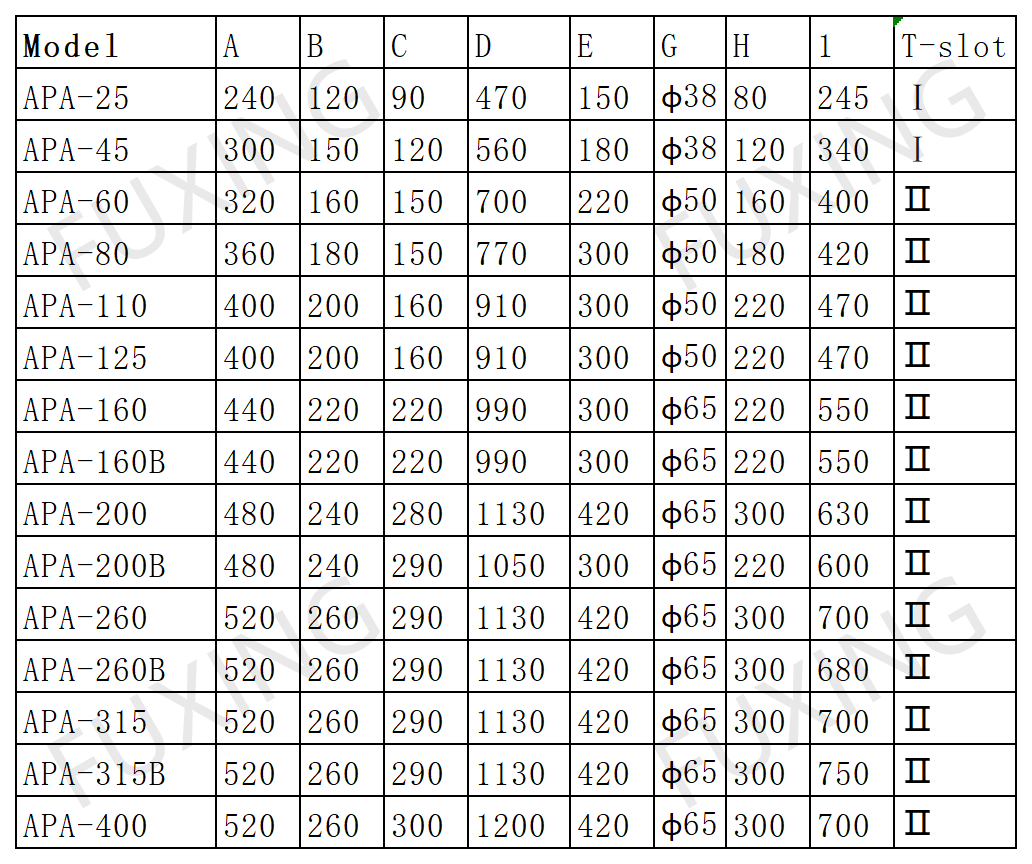

Workbench parameters

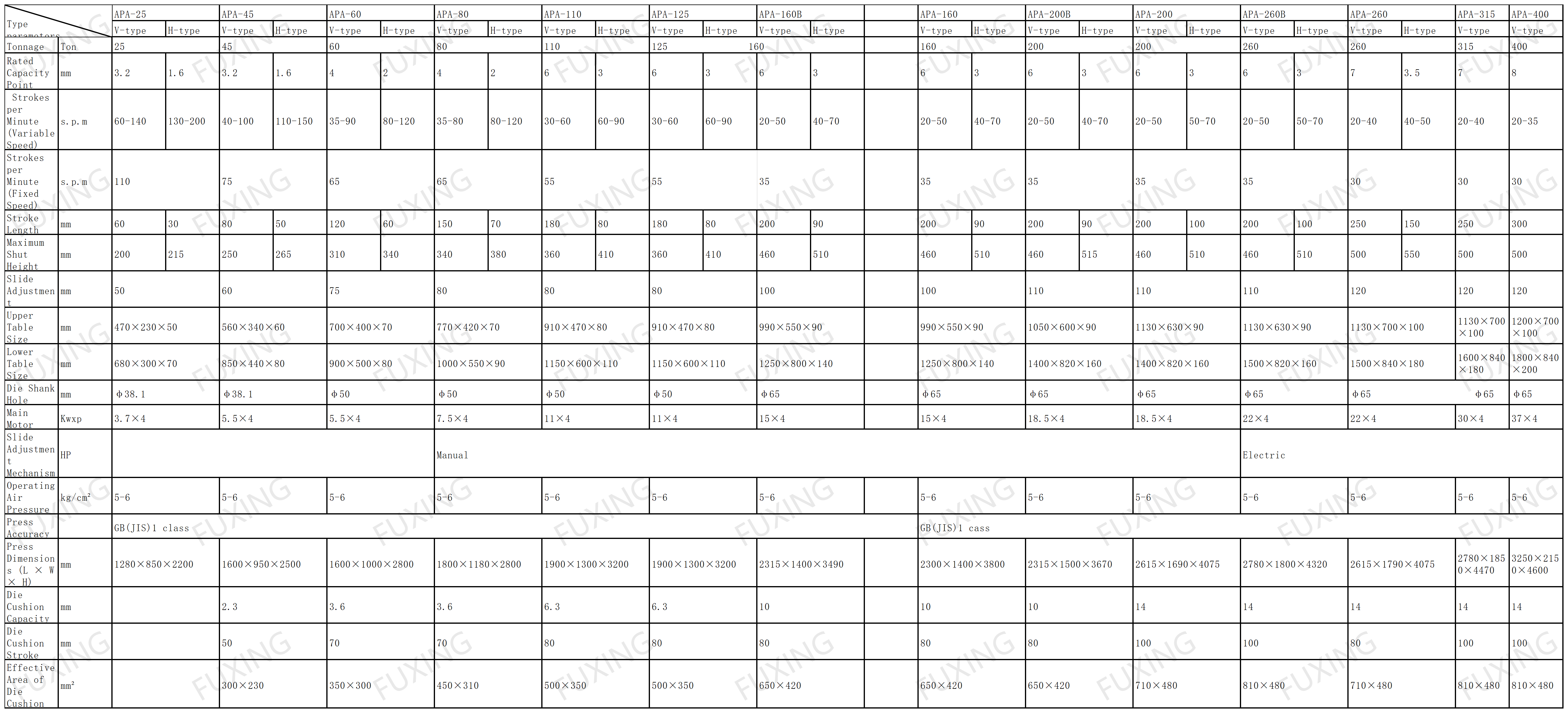

Product parameters
