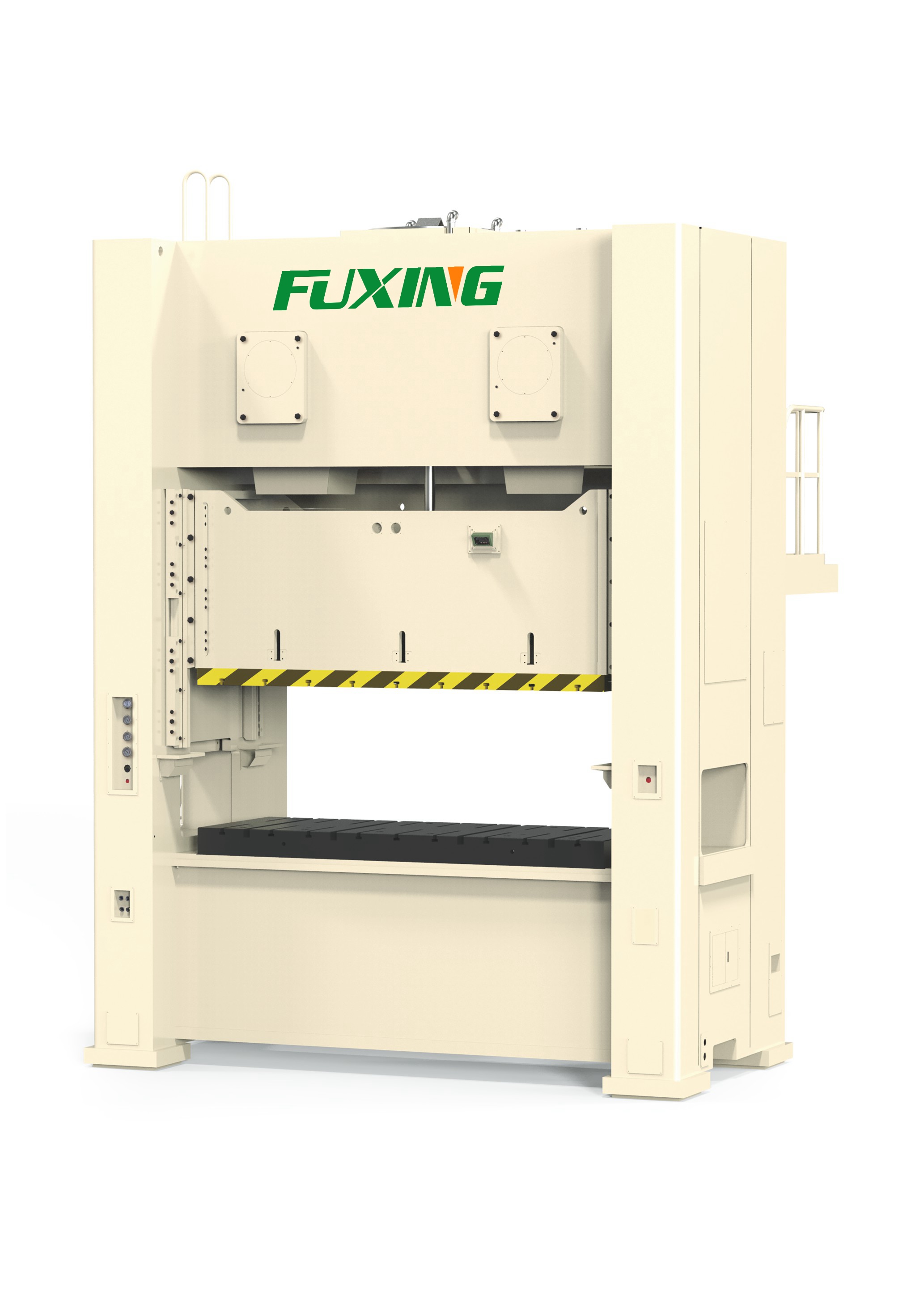

SPE Closed-Frame Double-Crank Ultra-Precision Punch Press

Technical Features

• Equipped with a four-gear or six-gear transmission system, the press achieves optimal connecting rod force distribution, significantly enhancing frame rigidity.

• The slide is guided by fully enclosed eight-sided gibs at four corners, ensuring high motion accuracy, exceptional stability, and outstanding resistance to eccentric loading.

• A forced thin oil circulation lubrication system is adopted, complete with lubrication monitoring to ensure reliable oil delivery to all critical components.

• An integrated oil return channel beneath the slide allows for the collection and reuse of lubrication oil, reducing oil consumption and promoting environmental sustainability.

Standard Accessories

• Inverter

• Motorized Slide Adjustment Device

• Air Source Connector

• Touch Screen

• Electric Die Height Indicator

• Double Downstroke Protection Device

• Pre-Cutting Counter

• Electric Thin Oil Lubrication Device

• Misfeed Detection Device

• Pre-Break Counter

• Slide & Die Balancing Device

• Power Outlet

• Electronic Cam

• Crank Angle Indicator

• Maintenance Tools & Toolbox

• Hydraulic Overload Protection Device

• Counter

• User Manual

Optional Accessories

• Pneumatic Die Cushion Device

• Upper Knock-Out Device on Slide

• Foot Switch

• Die Lighting Device

• Leveling Machine (Straightener)

• Anti-Vibration Pads

• Quick Die Change System (Lifter, Clamper, or Die Arm)

• Photoelectric Safety Device

• Feeder (Pneumatic, Mechanical, or NC Types)

• Material Uncoiler (Decoiler)

• Robotic Arm (Manipulator)

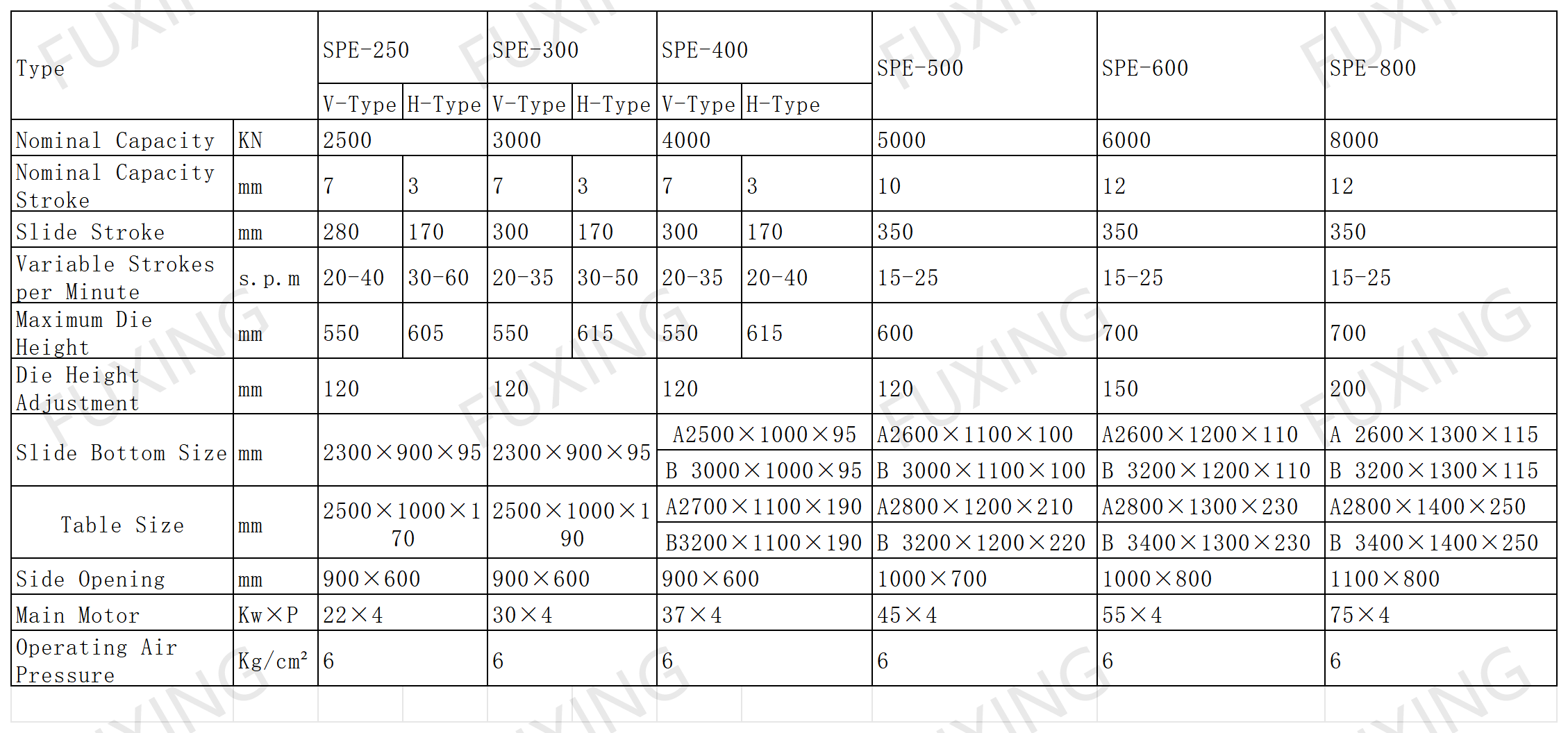

 Product parameters
