In modern manufacturing, metal stamping technology is widely used in industries such as automotive components, hardware products, electronic parts, home appliances, and fasteners. As one of the most important machines in the stamping process, the pneumatic power press has become a preferred solution for many manufacturers due to its high efficiency, precision, and reliable performance.

So, what exactly is a pneumatic power press? How does it work? What are its advantages? And how can manufacturers choose the right stamping machine for their production needs? This article will provide a complete introduction to pneumatic power presses.

1. What Is a Pneumatic Power Press?

A pneumatic power press is a mechanical press machine that uses compressed air to control the pneumatic clutch and brake system, driving the crankshaft and slide to perform vertical reciprocating movements for metal stamping operations.

Through the cooperation between the punch and die, a pneumatic power press can perform various metal forming processes, including:

• Punching

• Blanking

• Forming

• Bending

• Drawing

Compared with traditional mechanical presses, modern pneumatic power presses offer faster response, more stable operation, improved safety, and better compatibility with automated production systems.

They are widely used for high-volume and continuous stamping applications.

2. Main Components of a Pneumatic Power Press

A high-performance pneumatic power press consists of several key components.

1. High Rigidity Frame

The frame is the main load-bearing structure of the press and directly affects machine rigidity and stamping accuracy.

According to different structures, pneumatic power presses are mainly divided into:

C-Frame Pneumatic Press

The C-frame structure features an open working area, making it convenient for die installation, replacement, and workpiece loading/unloading.

It is one of the most commonly used structures in the stamping industry.

H-Frame Pneumatic Press

The H-frame structure provides higher overall rigidity and stability.

It is suitable for:

• Large-size workpieces

• High-precision stamping

• Heavy-duty stamping applications

2. Crankshaft System

The crankshaft is one of the most important transmission components of a pneumatic power press.

The motor provides rotational power, which is transferred through the flywheel and pneumatic clutch to rotate the crankshaft. The crankshaft then converts rotary motion into the up-and-down movement of the slide.

A high-precision crankshaft design ensures stable operation and consistent product quality during long-term production.

3. Pneumatic Clutch and Brake System

The pneumatic clutch and brake system is one of the key features that distinguishes pneumatic power presses from traditional mechanical presses.

By using compressed air, the system controls the operation of the press and provides:

• Fast start-up

• Accurate stopping

• Continuous stamping capability

• Improved operational safety

4. Slide and Guide System

The slide is responsible for holding the punch and completing the stamping process.

A precision guide system helps:

• Reduce operating deviation

• Extend die service life

• Improve stamping consistency

• Maintain product quality

3. How Does a Pneumatic Power Press Work?

The working process of a pneumatic power press can be summarized as:

Motor starts → Flywheel stores energy → Pneumatic clutch engages → Crankshaft rotates → Connecting rod moves → Slide moves up and down → Stamping operation is completed

During production, metal sheets or strips are fed into the die area manually or automatically. The press then performs single or continuous stamping operations to produce the required components.

For automated production, pneumatic power presses are often combined with feeding equipment to achieve continuous and efficient manufacturing.

4. Advantages of Pneumatic Power Presses

1. High Production Efficiency

Pneumatic power presses are designed for high-volume continuous production.

They can be integrated with:

• NC feeders

• Servo feeders

• 3-in-1 coil feeding systems

to create fully automated stamping production lines.

2. Stable Stamping Accuracy

A high-rigidity frame structure, precision-machined components, and reliable transmission system help maintain stable stamping accuracy during long-term operation.

This is especially important for industries requiring consistent product dimensions and large production quantities.

3. Wide Application Range

Pneumatic power presses can process various materials, including:

• Stainless steel

• Carbon steel

• Copper

• Aluminum

They are widely used in different manufacturing industries.

4. Easy Maintenance

Compared with hydraulic equipment, pneumatic power presses have a simpler mechanical structure and lower maintenance requirements, making them suitable for long-term industrial production.

5. Fuxing Machinery — Professional Pneumatic Power Press Manufacturer

As a professional manufacturer specializing in metal forming equipment, Fuxing Machinery is committed to providing high-performance pneumatic power presses and complete metal stamping solutions for global customers.

Our product range includes:

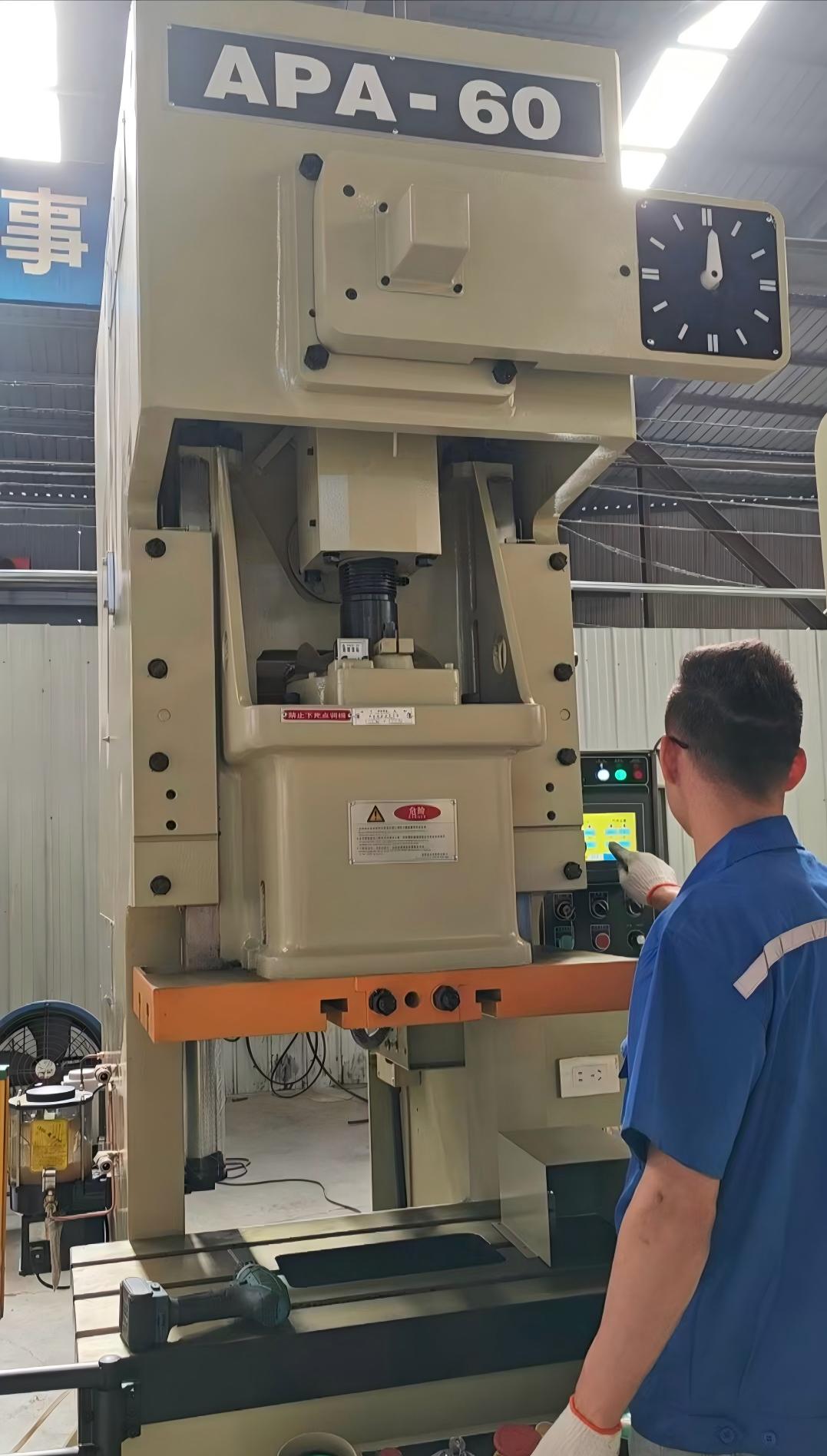

• APA Series High Precision C-Frame Pneumatic Power Presses

• APC Series Double Crank Pneumatic Presses

• APE Series H-Frame High Precision Pneumatic Presses

• High-Speed Stamping Presses

• Automatic Feeding and Stamping Production Solutions

Fuxing Machinery pneumatic power presses feature:

✅ High-rigidity machine structures
✅ Precision transmission systems
✅ Reliable pneumatic clutch and brake technology
✅ Automatic lubrication systems
✅ Stable performance for continuous production

Whether customers need standard stamping equipment or customized solutions for special production requirements, Fuxing Machinery can provide suitable press solutions according to product characteristics and manufacturing needs.

6. Applications of Pneumatic Power Presses

Fuxing Machinery pneumatic power presses are widely used in:

Fastener Industry

Applications include:

• Washers

• Metal fastener components

• Precision stamping parts

Automotive Industry

Applications include:

• Brackets

• Connecting components

• Structural parts

Electronics Industry

Applications include:

• Precision terminals

• Metal housings

• Electronic components

Hardware and Appliance Industry

Applications include:

• Various metal components

• Custom stamped parts

7. How to Choose the Right Pneumatic Power Press?

When selecting a pneumatic power press, manufacturers should consider several important factors:

1. Material Type and Thickness

Different materials require different stamping forces and machine capacities.

2. Product Size

The following factors should be considered:

• Worktable size

• Throat depth

• Die installation space

3. Production Efficiency Requirements

High-speed continuous production requires machines with higher rigidity and better stability.

4. Automation Requirements

According to production volume, manufacturers can choose:

• Manual operation

• Semi-automatic feeding

• Fully automatic stamping production lines

Conclusion

A pneumatic power press is an essential machine in modern metal manufacturing. With the development of manufacturing toward higher efficiency, precision, and automation, reliable stamping equipment has become a key factor in improving production capability and market competitiveness.

Fuxing Machinery specializes in pneumatic power press manufacturing and provides professional metal stamping solutions for global manufacturers — from individual press machines to complete automated stamping systems.

If you are looking for a suitable pneumatic power press solution for your production needs, please feel free to contact us.

Fuxing Machinery — Precision Stamping Solutions for Global Manufacturing.
